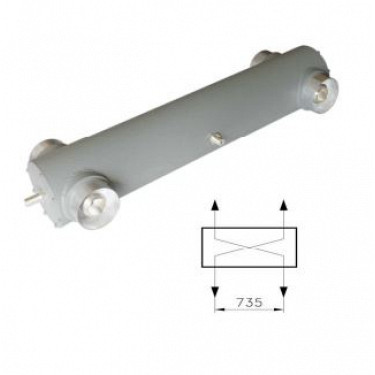

Part Number 1488-Vx

Mechanical Characteristics

Connections:EIA 4 1/2"

Connections options:EIA 7/8", 1 5/8"and 3 1/8"

Overall dimensions [WxDxH] [mm.]:1015x180x300

Temperature range [C°]:-10÷50

Weight [kg.]:28

Electrical Characteristics

Frequency Range [MHz]: 87.5÷108

Coupling Factor [dB]: 3 ± 0.2

Insulation [dB]:  > 30

Maximum Total Power [W]: 80000

Return loss [dB]: > 26

Impedance [Ohm]: 50
