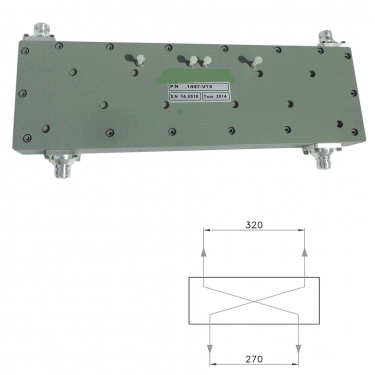

Part Number 1447-Vx

Mechanical Characteristics

Connections:N

Connections options:DIN 7/16, EIA 7/8" and 1 5/8"

Overall dimensions [WxDxH] [mm.]:356x45x150

Temperature range [C°]:-10÷50

Weight [kg.]:4

Electrical Characteristics

Frequency Range [MHz]: 87.5÷108

Coupling Factor [dB]: 3 ± 0.2

Insulation [dB]:  > 30

Maximum Total Power [W]: 4000

Return loss [dB]: > 26

Impedance [Ohm]: 50
