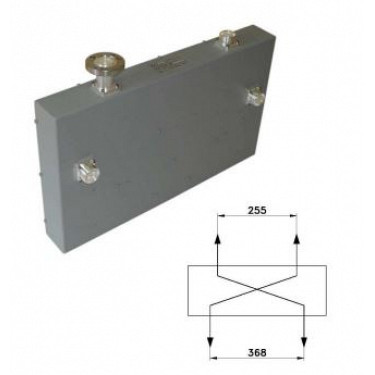

Part Number 1375-Vx

Mechanical Characteristics

Connections:EIA 7/8"

Connections options:N, DIN 7/16 and EIA 1 5/8"

Overall dimensions [WxDxH] [mm.]:462x77x312

Temperature range [C°]:-10÷50

Weight [kg.]:6

Electrical Characteristics

Frequency Range [MHz]: 87.5÷108

Coupling Factor [dB]: 3 ± 0.2

Insulation [dB]:  > 30

Maximum Total Power [W]: 6000

Return loss [dB]: > 26

Impedance [Ohm]: 50
