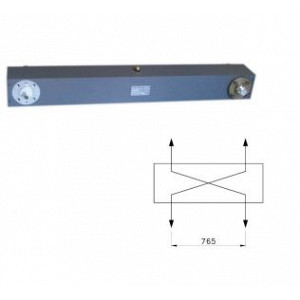

3dB Hybrid Coupler 15kW
Part Number 1096-Vx
Mechanical Characteristics
Connections:EIA 1 5/8"
Connections options:N, DIN 7/16, EIA 7/8" and 3 1/8"
Overall dimensions [WxDxH] [mm.]:877x100x180
Temperature range [C°]:-10÷50
Weight [kg.]:8
Electrical Characteristics
Frequency Range [MHz]: 87.5÷108
Coupling Factor [dB]: 3 ± 0.2
Insulation [dB]: > 30
Maximum Total Power [W]: 15000
Return loss [dB]: > 26
Impedance [Ohm]: 50
