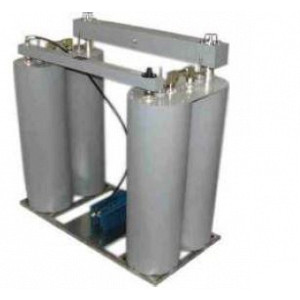

5+40KW FM CONSTANT IMPEDANCE COMBINER (DOUBLE CAVITY)

Features

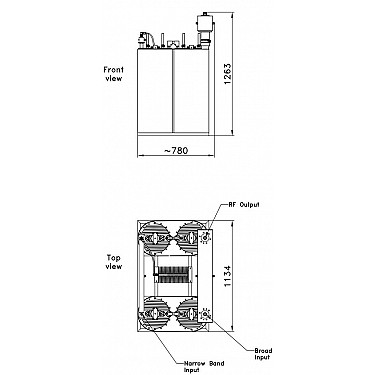

Mechanical characteristics

• Input narrowband EIA 7/8" male
• Input broadband EIA 3 5/8"male
• Output EIA 3 5/8"
• Overall dimensions [WxDxH] [mm.] 780x1134x1263
• Weight [kg.] 135
• Temperature range [° C] -10 ÷ +50

Electrical characteristics

• Frequency range [MHz] 87.5 ÷ 108
• N.B İnsertion Loss [dB] < 0.3
• B.B İnsertion Loss [dB] <0.2
• Min. distance between channels [MHz] 1.4
• Insulation NB>BB [dB] > 40
• Insulation BB>NB [dB] >40
• Return loss by channels [dB]>26
• Input/Output impedance [Ohm] 50
• Narrow Band Max. Power [W] 5000
• Maximum Output Power [W] 45000
