CFM2-1K+3K-4-DP1447

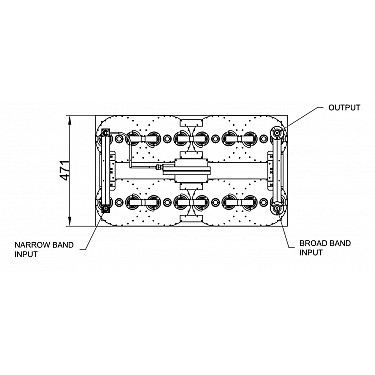

1+3kW FM DUAL BRIDGE COMBINER (QUATRO CAVITY)

Features


Mechanical characteristics

  • Input narrowband EIA  7/16"
  • Input broadband EIA  7/8"
  • Output EIA  7/8"
  • Overall dimensions [WxDxH] [mm.] 817x471x910
  • Weight [kg.] 85
  • Temperature range [° C] -10 ÷ +50


Electrical characteristics

  • Frequency range [MHz] 87.5 ÷ 108
  • N.B İnsertion Loss [dB] < 1.75
  • B.B İnsertion Loss [dB] <0.45
  • Min. distance between channels [KHz] 400
  • Insulation NB>BB [dB] > 40
  • Insulation BB>NB [dB] > 50
  • Return loss by channels [dB] >26
  • Input/Output impedance [Ohm] 50
  • Narrow Band Max. Power [W] 1000
  • Maximum Output Power [W] 4000
