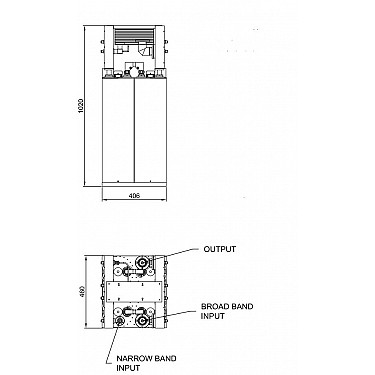

CFM2-2K+10K-DP158

2+10KW FM Constant Impedance Combiner (Double Cavity)

Features

Mechanical characteristics

  • Input narrowband EIA 7/8" or DIN 7/16
  • Input broadband EIA 1 5/8"
  • Output EIA 1 5/8"
  • Overall dimensions [WxDxH] [mm.] 406x460x1020
  • Weight [kg.] 55
  • Temperature range [° C] -10 ÷ +50


Electrical characteristics

  • Frequency range [MHz] 87.5 ÷ 108
  • N.B İnsertion Loss [dB] < 0.5
  • B.B İnsertion Loss [dB] <0.2
  • Min. distance between channels [MHz] 1.4
  • Insulation NB>BB [dB] > 40
  • Insulation BB>NB [dB] >40
  • Return loss by channels [dB]>26
  • Input/Output impedance [Ohm] 50
  • Max. Input Power N.B [W] 2000
  • Max. Input Power B.B[W] 10000
  • Maximum Output Power [W] 12000
