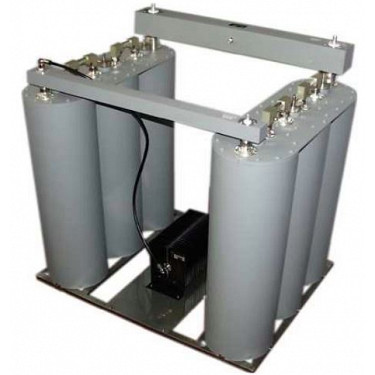

CFM2-5K+10K/3-DP158
5+10KW FM CONSTANT IMPEDANCE COMBINER (TRIPLE CAVITY)
Features:
- Frequency range : 87.5 ÷ 108 [MHz]
- Filter type: Triple Cavity
- Input / Output impedance: 50 [Ohm]
- Retuen Loss by channels : >26
- Max Power N.B :5000W
- Max Output Power 15000 W
- Insertion Loss N.B < 0.55dB
- Insertion Loss B.B < 0.2 dB
- Min. Distance between Ch. 0.8MHz
- Insulation between channels : N.B > B.B: > 40 dB
- B.B > N.B: > 40 dB
- Ambient Temperature range [° C] -10 ÷ 50
- Weight 85 kg
- Input narrowband EIA 7/8"
- Input broadband EIA 1 5/8"
- Output: EIA 1 5/8"
