FTC25 Product Catalog


25W Dijital Stereo FM Exciter
FTC25 has a digital modulator (DDS)including stereo encoder and RDS encoder. TA, TP and PTY can be set via GPIO inputs connecting ON/OFF switches. There are 8 memories to save frequency, power etc. and these memories can be selected by GPIO pins.
   Enlarge Picture


OM 30/50/100 Product Catalog

30/50/100W FM Exciter with Digital and Analog Inputs

Broadband(87.5-108MHz), 10 frequencies can be saved to the memory and used for N+1 Redundancy system, Event Logs monitored on LCD or remotely via internet, Remote Control via Internet(option)
   Enlarge Picture   Product Details


FT750 750W FM TRANSMITTER Product Catalog

750W FM Transmitter, Mains efficiency (> 67%), Power Consumption 1100VA

Digital exciter, Remote Control via Internet, High efficiency (Less energy consumption, Less heating), Extra power supply for control system, Broadband(87.5-108MHz), N+1 Redundancy and Change Over system is included, 30 Event Logs monitored on LCD or remotely via internet, SMS and email warning(option), GSM to Ethernet modem(option)
   Enlarge Picture   Product Details


FT1K 1 KW FM TRANSMITTER Product Catalog

1 kW FM Transmitter, Mains efficiency (> 67%), Power Consumption 1550VA

Digital exciter, Remote Control via Internet, High efficiency (Less energy consumption, Less heating), Extra power supply for control system, Broadband(87.5-108MHz), N+1 Redundancy and Change Over system is included, 30 Event Logs monitored on LCD or remotely via internet, SMS and email warning(option), GSM to Ethernet modem(option)
   Enlarge Picture   Product Details


FT2K 2 KW FM TRANSMITTER Product Catalog

2 kW FM Transmitter, Mains efficiency (> 67%), Power Consumption 3000VA

Digital exciter, Remote Control via Internet, High efficiency (Less energy consumption, Less heating), Extra power supply for control system, Broadband(87.5-108MHz), N+1 Redundancy and Change Over system is included, 30 Event Logs monitored on LCD or remotely via internet, SMS and email warning(option), GSM to Ethernet modem(option)
   Enlarge Picture   Product Details


FT2K5 2.5 KW FM TRANSMITTER Product Catalog

2.5 kW FM Transmitter, Mains efficiency (> 67%), Power Consumption 3800VA

Digital exciter, Remote Control via Internet, High efficiency (Less energy consumption, Less heating), Extra power supply for control system, Broadband(87.5-108MHz), N+1 Redundancy and Change Over system is included, 30 Event Logs monitored on LCD or remotely via internet, SMS and email warning(option), GSM to Ethernet modem(option)
   Enlarge Picture   Product Details


FT4K 4 KW FM TRANSMITTER Product Catalog

4 kW FM Transmitter, Mains efficiency (> 67%), Power Consumption 6000VA

Digital exciter, Remote Control via Internet, High efficiency (Less energy consumption, Less heating), Extra power supply for control system, Broadband(87.5-108MHz), N+1 Redundancy and Change Over system is included, 30 Event Logs monitored on LCD or remotely via internet, SMS and email warning(option), GSM to Ethernet modem(option)
   Enlarge Picture   Product Details


FT5K 5 KW FM TRANSMITTER Product Catalog

5 kW FM Transmitter, Mains efficiency (> 67%), Power Consumption 7500VA

Digital exciter, Remote Control via Internet, High efficiency (Less energy consumption, Less heating), Extra power supply for control system, Broadband(87.5-108MHz), N+1 Redundancy and Change Over system is included, 30 Event Logs monitored on LCD or remotely via internet, SMS and email warning(option), GSM to Ethernet modem(option)
   Enlarge Picture   Product Details


FT7K 7 KW FM TRANSMITTER Product Catalog

7 kW FM Transmitter, Mains efficiency (> 67%), Power Consumption 10500VA

Digital exciter, Remote Control via Internet, High efficiency (Less energy consumption, Less heating), Extra power supply for control system, Broadband(87.5-108MHz), N+1 Redundancy and Change Over system is included, 30 Event Logs monitored on LCD or remotely via internet, SMS and email warning(option), GSM to Ethernet modem(option)
   Enlarge Picture   Product Details

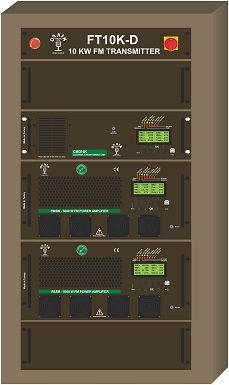

FT10K 10 KW FM TRANSMITTER Product Catalog

10 kW FM Transmitter, Mains efficiency (> 67%), Power Consumption 15000VA

Digital exciter, Remote Control via Internet, High efficiency (Less energy consumption, Less heating), Extra power supply for control system, Broadband(87.5-108MHz), N+1 Redundancy and Change Over system is included, 30 Event Logs monitored on LCD or remotely via internet, SMS and email warning(option), GSM to Ethernet modem(option)
   Enlarge Picture   Product Details


FT15K 15 KW FM TRANSMITTER Product Catalog

15 kW FM Transmitter, Mains efficiency (> 67%), Power Consumption 22400VA

Digital exciter, Remote Control via Internet, High efficiency (Less energy consumption, Less heating), Extra power supply for control system, Broadband(87.5-108MHz), N+1 Redundancy and Change Over system is included, 30 Event Logs monitored on LCD or remotely via internet, SMS and email warning(option), GSM to Ethernet modem(option)
   Enlarge Picture   Product Details

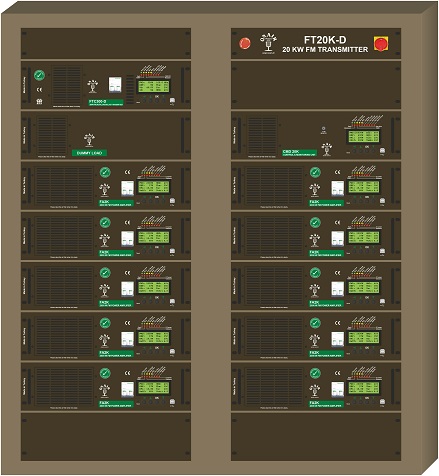

FT20K 20 KW FM TRANSMITTER Product Catalog

20 kW FM Transmitter, Mains efficiency (> 67%), Power Consumption 30000VA

Digital exciter, Remote Control via Internet, High efficiency (Less energy consumption, Less heating), Extra power supply for control system, Broadband(87.5-108MHz), N+1 Redundancy and Change Over system is included, 30 Event Logs monitored on LCD or remotely via internet, SMS and email warning(option), GSM to Ethernet modem(option)
   Enlarge Picture   Product Details
